AMPLIFIED POWER AND PERFORMANCE
Introducing an innovative air-cooled motor, boasting a base power of 4kW and surging to a peak of 8kW, showcasing a remarkable 33% surge compared to the original Sting model. This enhanced power output translates into significantly swifter acceleration, complemented by a notable 13% upswing in maximum velocity, firmly establishing the Sting R as the frontrunner in its industry.
SPECIFICATIONS AT A GLANCE
LICENSE REQUIREMENT: REQUIRED LICENSE
MAXIMUM SPEED: 55mph
RANGE: 52 Miles
BATTERY: Lithium LG Cells, 60V 45Ah
FRONT SUSPENSION: Telescopic Forks

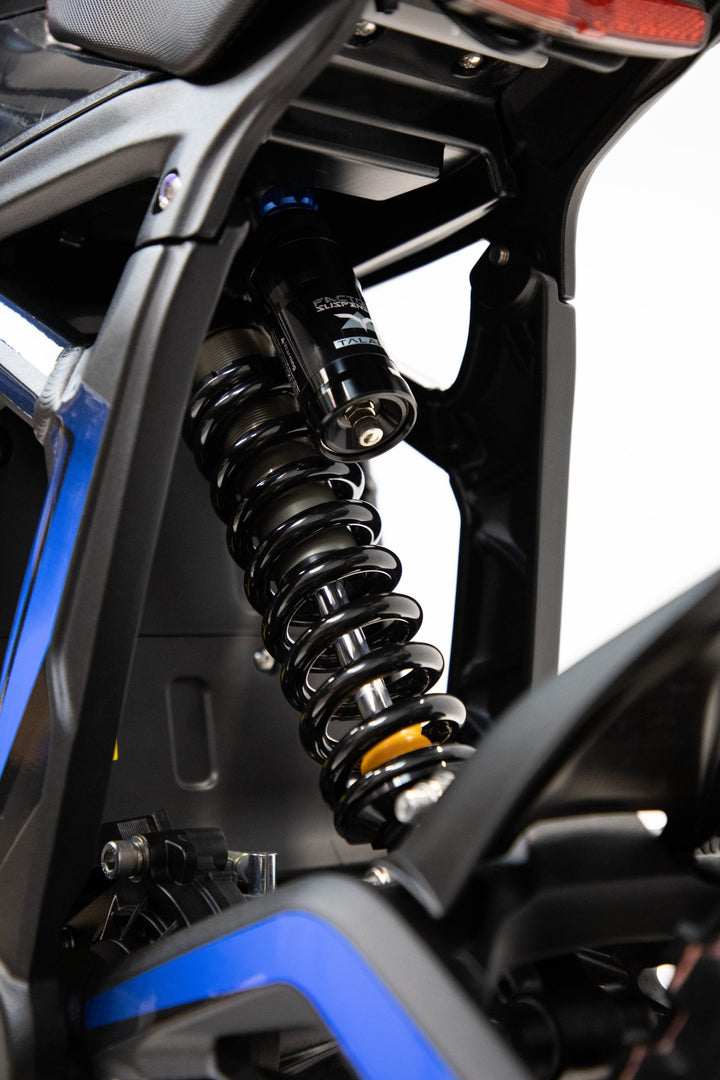

REAR SUSPENSION: Monoshock
DISPLAY: TFT Screen
PEAK POWER: 8000W

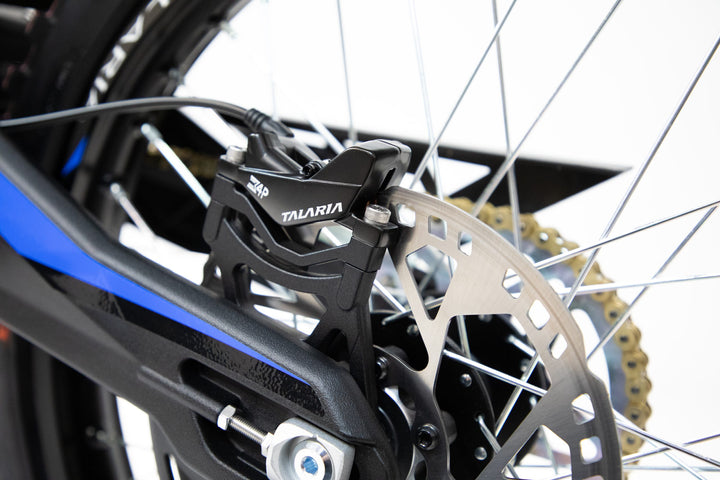

BRAKING SYSTEM Front: Hydraulic Disc, Rear: Hydraulic Disc

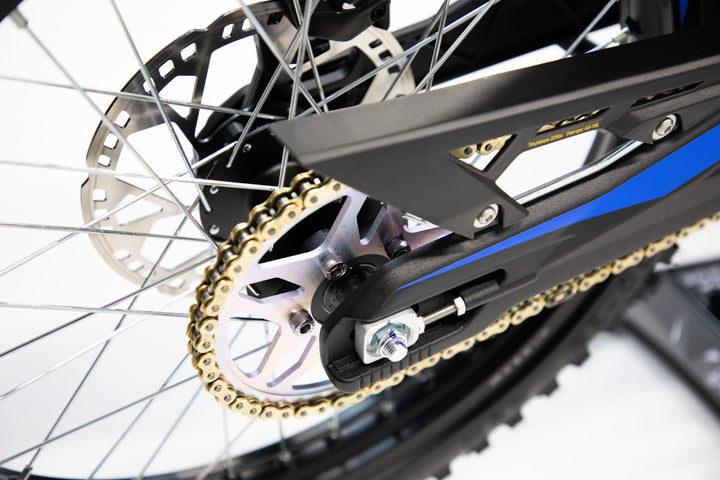

PRIMARY TRANSMISSION: Chain
TYRES Front: 70/100-19, Rear: 80/100-19
CHARGING TIME: 3 Hours
*ACTUAL RANGE DEPENDS ON VARIOUS RIDING CONDITIONS AND FACTORS SUCH AS SPEED, WEIGHT, AND BRAKING.
ENHANCED BATTERY CAPACITY
In response to greater demands, Talaria incorporated larger batteries, witnessing an impressive 18% boost from 38Ah to 45Ah. This expansion in battery capacity not only elevates acceleration and top speed but also extends the range by 53 miles, all while reducing charging time by a notable 25%, allowing a complete charge from 0% to 100% in just 3 hours.
ENGINEERED FOR OFF-ROAD DOMINANCE
With a sturdy frame and swingarm in synergy with an upgraded suspension system, now offering an expanded range of preload and rebound adjustments, the Sting R confidently stands out as a leading contender in its class. The inclusion of a more ergonomically designed seat further enhances comfort during lengthier rides.
Motor
Rated Voltage: 60v (DC)
Rated Power / Peak Power: 4000W
Transmission: Gearbox + Chain
Torque: 45nm
Peak Efficiency: 96.6%
Mounting Position: Centre Frame
Cooling Method: Air Cooled
Controller
Type: FOC
Peak Efficiency: 92%
Battery
Max Range: *52 Miles
Battery: 60v 45Ah
Speedometer: TFT Digital
Charging Time: **3 Hours
* Range is dependant on speed/weight/braking and other factors
** Charging time is from 0-100%
Chassis
Max Load: 100kg
Net Weight: 66kg
Forks: Manitou (Optional) / Fastace / Talaria Factory
Wheel Type: Spoke Wheels 19x1.6
Dimensions (LxWxH): 1880mm x 770mm x 1088mm
Chassis Construction Method: Forged 6000 Tons of Pressure
Rear Shock Absorber: Talaria Offroad Performance
Front Tyre Size: 70/100-19
Rear Tyre Size: 80/100-19
Chassis Surface: Anodizing Paint Treated
Headlight: LED
Tyres: CST
Minimum Ground Clearance: 260mm
